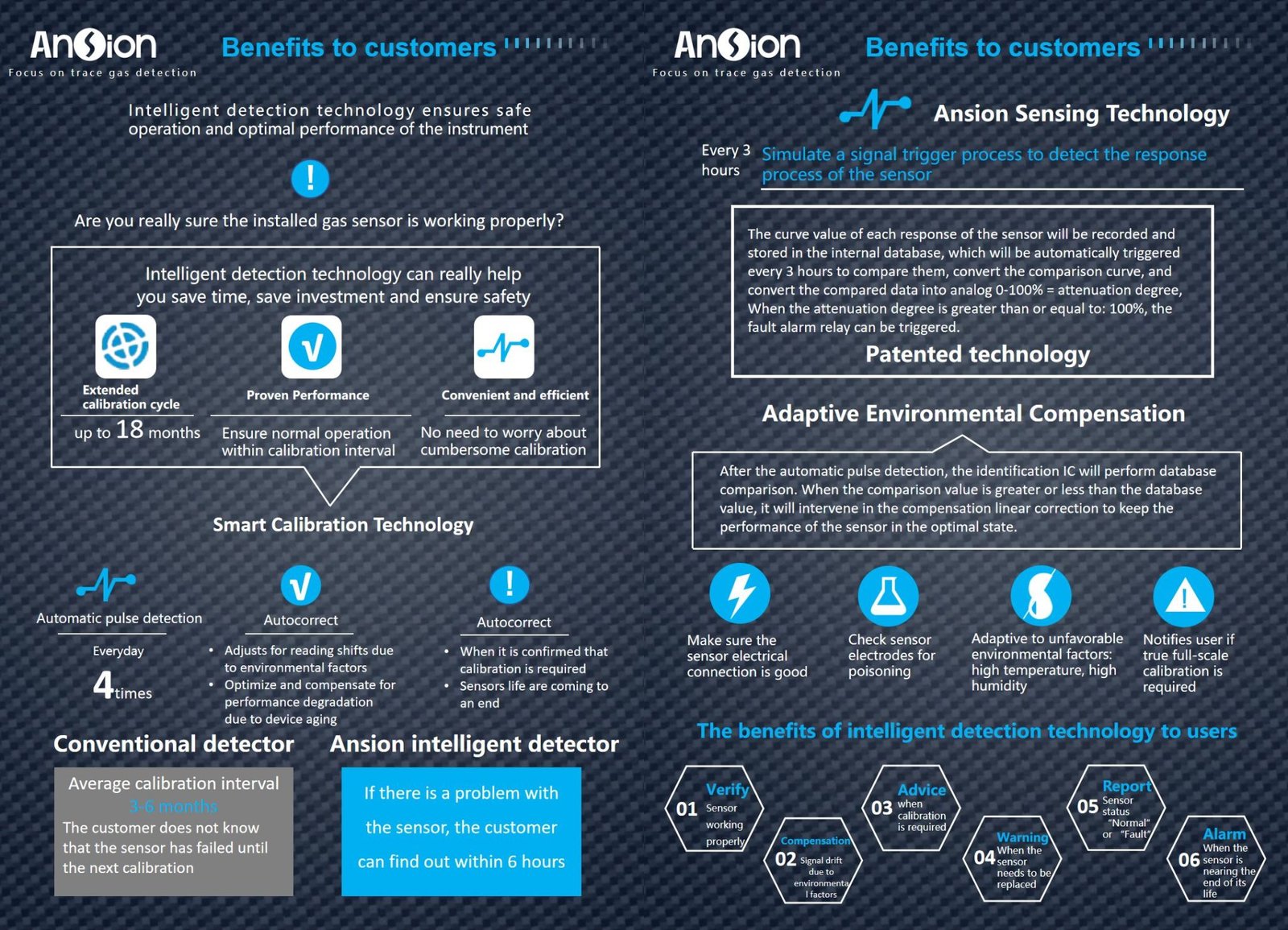

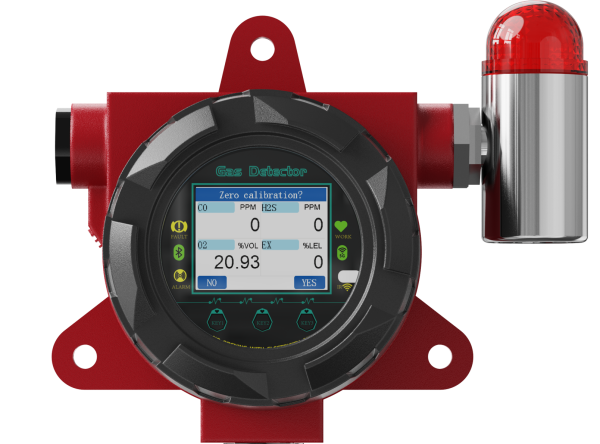

Ansion’s new generation of intelligent gas detectors, LCD display modules, equipped with high-quality gas sensor modules, high precision, longer service life, and longer calibration cycles. The built-in automatic monitoring sensor working status software reminds the user when to calibrate and when to replace a new sensor. The operation interface is simple and easy to get familiar with the settings quickly. The user can check and set the parameters of the detector through the infrared remote control or the panel buttons.

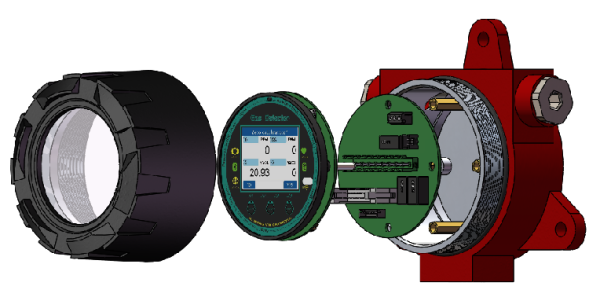

LCD modules adopt leading intelligent identification technology, which can be completely connected and replaced with any gas sensor of this model. It can support 1~4 kinds of gas detection, and customize multi-gas detection according to customer needs, sensor are replaceable.

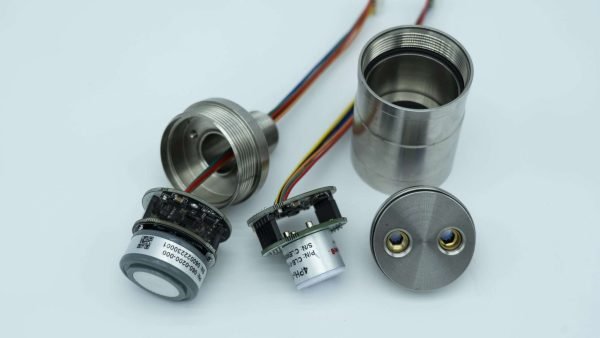

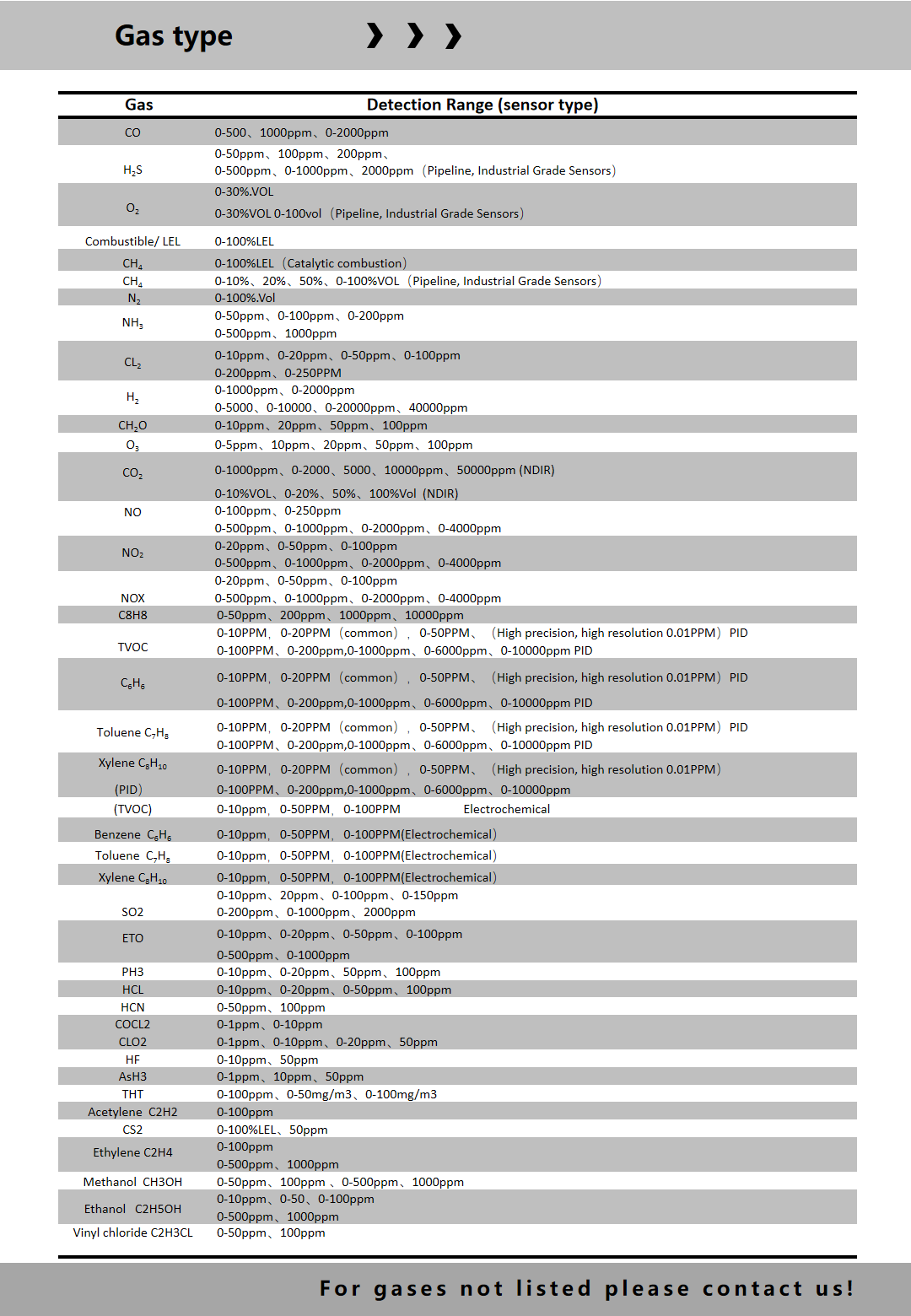

Each smart gas detector supports a complete range of sensors (Electrochemical, Combustible, NDIR, and PID are all supported)

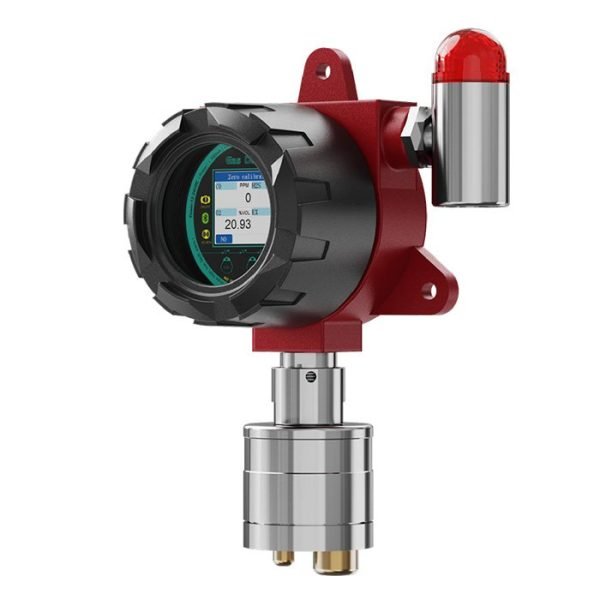

Fixed-type gas detectors/transmitters are widely used to continuously monitor toxic, flammable, and harmful gases in industrial applications such as petrochemical processing, mining metallurgy, fuel gas transport, leakage of natural gas, gas storage and distribution, spray paint and liquefied gas stations, and oil wells, etc. They can be mounted on a wall and provide an analog output of 4-20 mA with RS485 using diffusion sampling to monitor gases.

● High-quality catalytic combustion sensor, anti-smoke, anti-jamming

● Explosion-proof certification Exd IIC T6 Gb, protection grade IP66/IP67, ATEX, CE, SIL2 approval

● Comply with EMC design standards, resist high-intensity pulse surge current impact, high reliability and stability

● RS485/4-20mA/Power bus, 1 set of sound and light alarm interface, relay output

● Automatically track zero point to prevent drift, temperature compensation, multi-level calibration

● Infrared remote control (optional) can realize operation without opening the cover in dangerous places, such as: modify alarm point, address, concentration calibration, zero point calibration. The detector can also be set through the buttons on the display panel.

● Full software automatic calibration function, zero calibration function, make gas monitoring more accurate and reliable, It’s compatible with various control alarms, PLC, DCS and other control systems

Application

● Petrochemical industry, industrial production, smelting and forging, electric power, coal mine, tunnel engineering, environmental monitoring, sewage treatment.
● Biopharmaceuticals, household environmental protection, animal husbandry, greenhouse cultivation, warehousing and logistics, brewing and fermentation, agricultural production.
● Fire protection, gas, building construction, municipal enterprises, school laboratories, scientific research centers.
