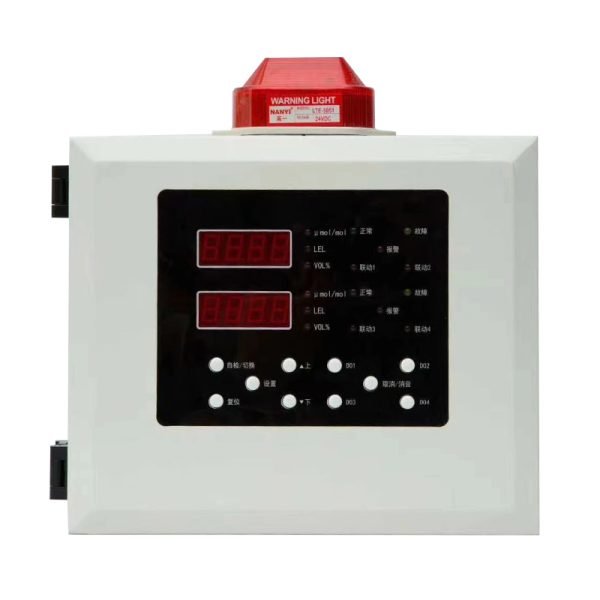

Gas Controller/Gas Monitor- 2Channels

Send email to sales@ansiontech.com

This Gas Controller is used to monitor gas detector data in the duty room, transmit it online in real time, and can be connected with DSC and PLC. Can connect 2 gas detectors, with 4-20mA signal, has buzzer and alarm light, Metal case, easy to operate. Provide after-sale protection and technical support.

Extra Features

Premium Quality
Secure Payment
Satisfaction Guarantee
Worldwide Shipping

▪ Support channel：2 channels (4-20mA)
▪ Display type：LED
▪ Output signal：4-20mA RS485
▪ Connection mode：3-wire system, 4-wire system
▪ Cable specification：RVVP 3×1.5mm², RVVP 4×1.5mm²
▪ Power supply：220V(195-235VAC/50-60HZ)
▪ Relay output: 2 sets passive normally open/normally-closed contact
▪ Alarm type：Sound and Indicator light alarm
▪ Alarm volume ：≥90db
▪ Using environment：-20℃～50℃ （0-95)%RH

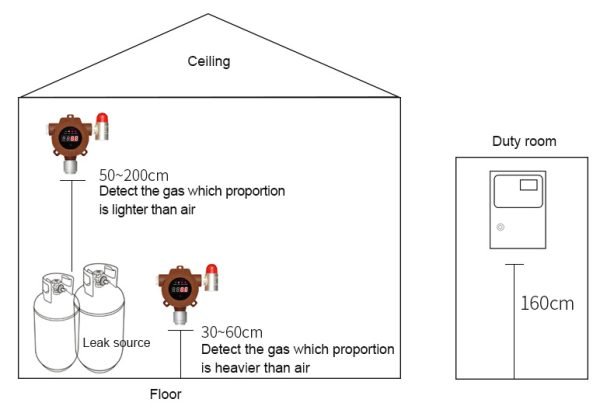

▪ Way to install：Wall mounting(non-explosion-proof place)
