Gas Controller- 8 Channels

Send email to sales@ansiontech.com

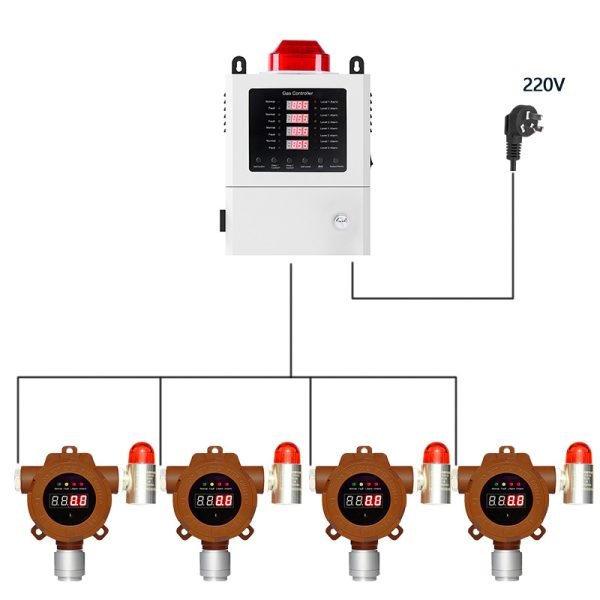

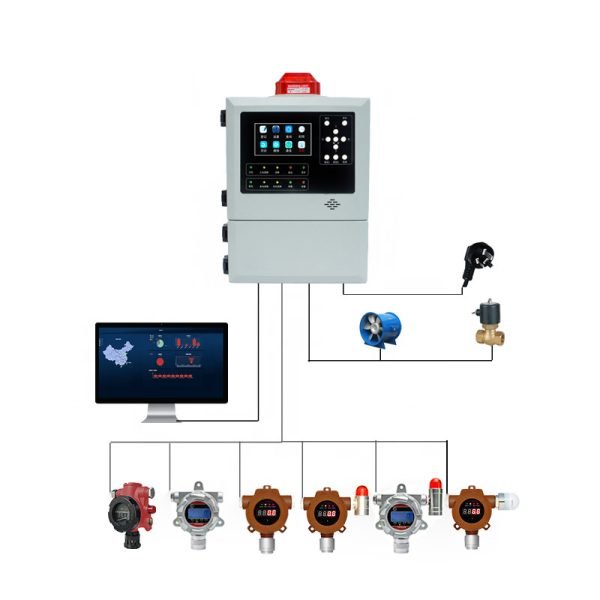

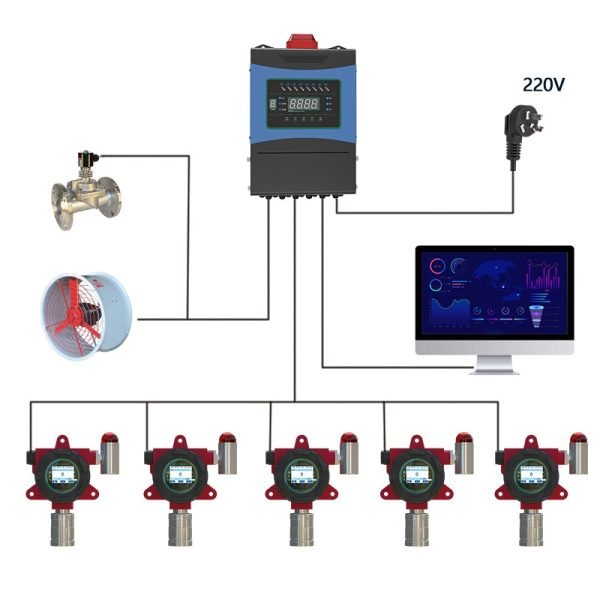

This Gas Controller is used to monitor gas detector data in the duty room, transmit it online in real time, and can be connected with DSC and PLC. Can connect 8 gas detectors, with 4-20mA signal, has buzzer and alarm light, Metal case, easy to operate. Provide after-sale protection and technical support.

Extra Features
  • Premium Quality
  • Secure Payment
  • Satisfaction Guarantee
  • Worldwide Shipping

Support channel：1~8 channels (4-20mA/RS485)

▪ Display type：LED

▪ Input signal：4-20mA / RS 485
▪ Output signal：RS485, 2 sets passive relays(10A/250VAC)
▪ Connection mode：3-wire system, 4-wire system
▪ Cable specification：RVVP 3×1.5mm², RVV 2*1.0mm2 RVVSP 2*1.0mm2
▪ Power supply：220V(195-235VAC/50-60HZ)
▪ Relay output: 2 sets passive normally open/normally-closed contact
▪ Alarm type：Sound and Indicator light alarm
▪ Alarm volume ：≥90db
▪ Using environment：-20℃～50℃ （0-95)%RH
▪ Way to install：Wall mounting(non-explosion-proof place)



Gas Control panel
