Gas Controller- Single Channel

Send email to sales@ansiontech.com

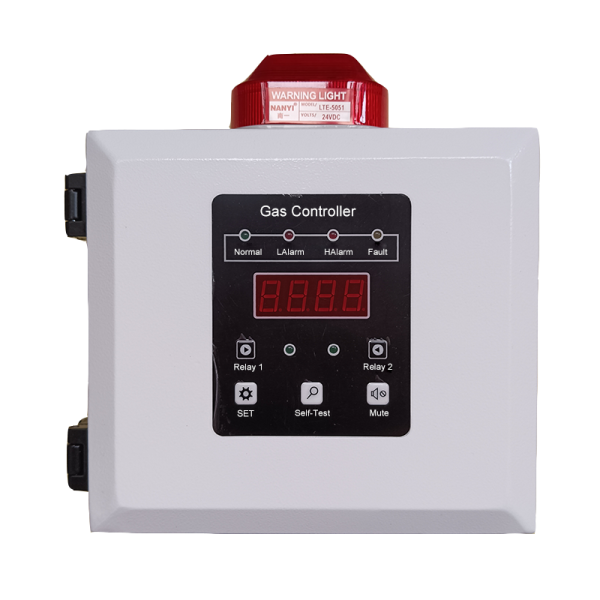

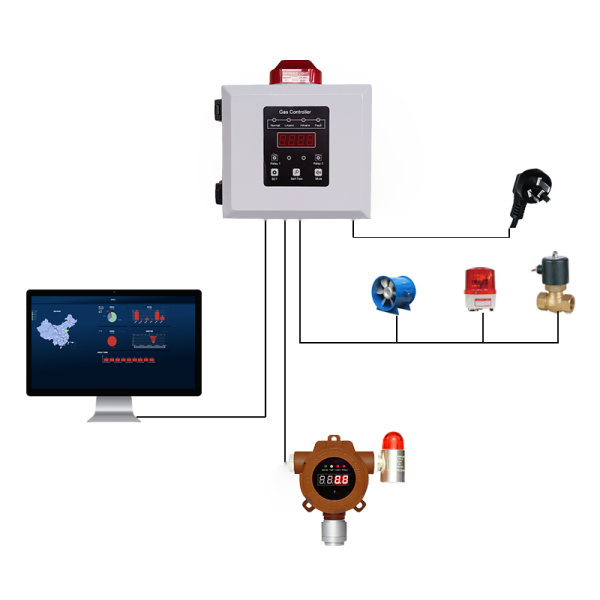

This Gas Controller is used to monitor gas detector data in the duty room, transmit it online in real time, and can be connected with DSC and PLC. Can connect 1~2 units gas detectors, with 4-20mA signal, has buzzer and alarm light, Metal case, easy to operate. Provide after-sale protection and technical support.

Extra Features
  • Premium Quality
  • Secure Payment
  • Satisfaction Guarantee
  • Worldwide Shipping

▪ Support channel：1 channels (4-20mA) 2 channels (4-20mA)
▪ Display type：LED
▪ Output signal：4-20mA RS485
▪ Connection mode：3-wire system, 4-wire system
▪ Cable specification：RVVP 3×1.5mm², RVVP 4×1.5mm²
▪ Power supply：220V(195-235VAC/50-60HZ)
▪ Relay output: 2 sets passive normally open/normally-closed contact
▪ Alarm type：Sound and Indicator light alarm
▪ Alarm volume ：≥90db
▪ Using environment：-20℃～50℃ （0-95)%RH
▪ Way to install：Wall mounting(non-explosion-proof place)
